Basic Info.
Model NO.
HTD-180K/KP
Application
Commercial, Industrial, Hospital, Laboratory, Residential/General-Purpose
Hole-Digit
10 Modules
Installation
Floor
Color
Golden, Sliver
Certification
CCC, CE, RoHS, ISO: 9001, OHSAS18001
Customized
Customized
Condition
New
Place of Origin
Zhejiang, Wenzhou, China
Keyword
Cover Type Floor Socket
Rated Current
10-25A
Voltage
110~240V
Current Type
AC
Frequency
50Hz~60Hz
Available Modules
Type 45
Company Certificate
ISO(9001, 14001), OHSAS18001
Producet Certificate
CE by TUV, CCC, RoHS
Interface Size
10 Modules
Transport Package
Inner Packing Box Outer Exporting Carton
Trademark
Safewire or OEM brand
Origin
China
HS Code
8536690000
Production Capacity
420000/Month
Product Description
Quick Details
Application:
CE certificate by TUV,Germany LVD test report
Features:
1. Application: Recessed stage floor box provides versatile solution to accessing power, audio and visual equipment through floor .
2.Lid degree against floor:90/180 degree.
3.Hinged lid thickness over 4~4.5m , static pressure over 1000N .
4.Cold-rolled Steel box thickness over 1.5~2.0mm with powder coated.

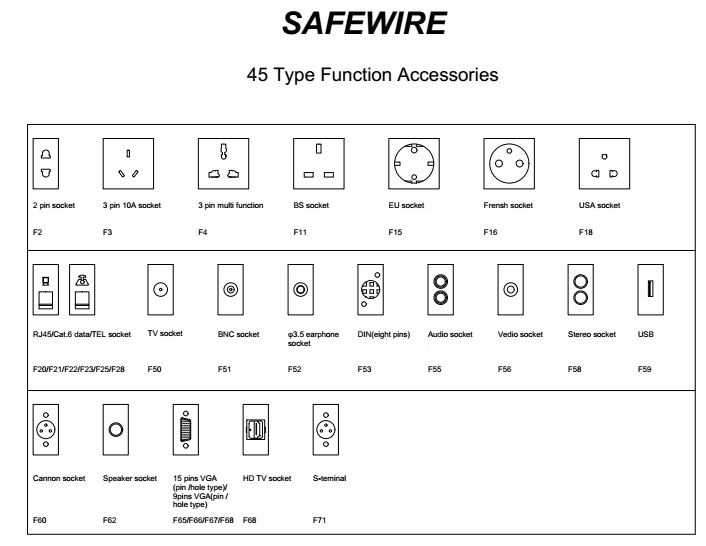

Available for F type 45*45mm type or D type23*26mm international sockets or modules types:
HTD-180K/KP Outline drawing :

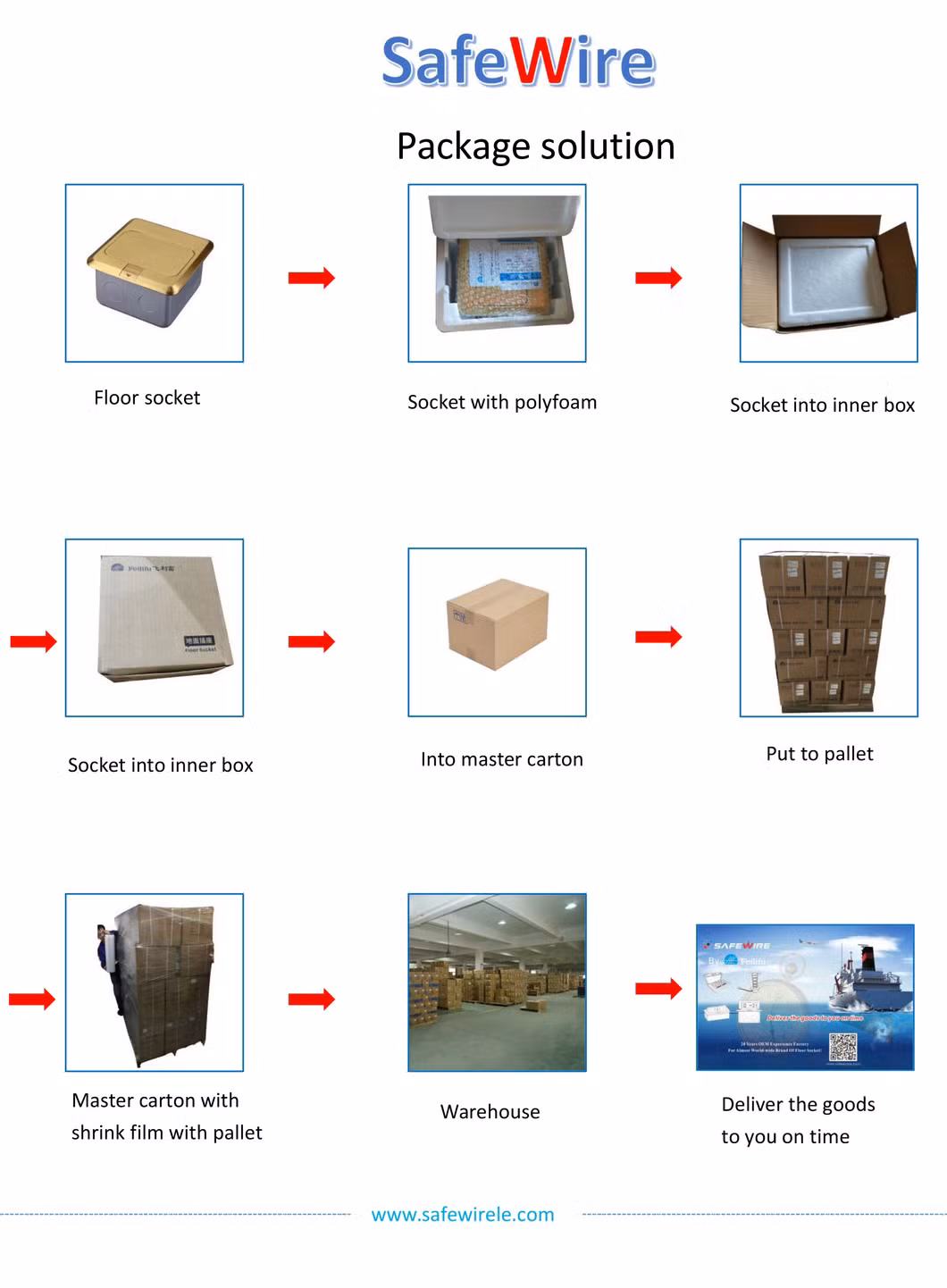

Package:4 Pcs inner box into a master carton.Poly bag with box packing.
Attentions:
1.When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).
2.This product is suitable for dry surface treatment, avoid water flush and immersion, and ensure its insulation.This product is not suitable for use in wet areas.
3.All dimensions quotes are nominal only.Drawing images and specification are only for illustrative purposes and dimensions are subject to final confirmation by us.
Safety Warning:
1.This is a class I product and must be earthed
2.This product must be installed/wired by a qualified electrician
3.For indoor use only.
4.For concrete access floor.
| Serial No. | Parameter | Description |
| 1 | Item No | HTD-180K/KP |
| 2 | Panel Material | Brass alloy/Stainless steel |
| 3 | Surface finish | Wire drawing/Polishing/Spray painting |
| 4 | Panel Dimension(mm) | 180*180 |
| 5 | Cutout(mm) | 173*173 |
| 6 | Capacity of modules | 10 ways modules |
| 7 | Mounting type | Horizontal installation |
| 8 | Bracket material | Zinc Alloy & Alu Alloy |
| 9 | Sink box Material | Steel+Zinc plated |
| 10 | Base box dimension(mm) | 170*170*90 |
| 11 | Available modules | 45*45/45*22.5(mm) |
Application:
CE certificate by TUV,Germany LVD test report
Features:
1. Application: Recessed stage floor box provides versatile solution to accessing power, audio and visual equipment through floor .
2.Lid degree against floor:90/180 degree.
3.Hinged lid thickness over 4~4.5m , static pressure over 1000N .
4.Cold-rolled Steel box thickness over 1.5~2.0mm with powder coated.
Available for F type 45*45mm type or D type23*26mm international sockets or modules types:
HTD-180K/KP Outline drawing :
Units:mm
Package:4 Pcs inner box into a master carton.Poly bag with box packing.
Attentions:
1.When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).
2.This product is suitable for dry surface treatment, avoid water flush and immersion, and ensure its insulation.This product is not suitable for use in wet areas.
3.All dimensions quotes are nominal only.Drawing images and specification are only for illustrative purposes and dimensions are subject to final confirmation by us.
Safety Warning:
1.This is a class I product and must be earthed
2.This product must be installed/wired by a qualified electrician
3.For indoor use only.
4.For concrete access floor.
